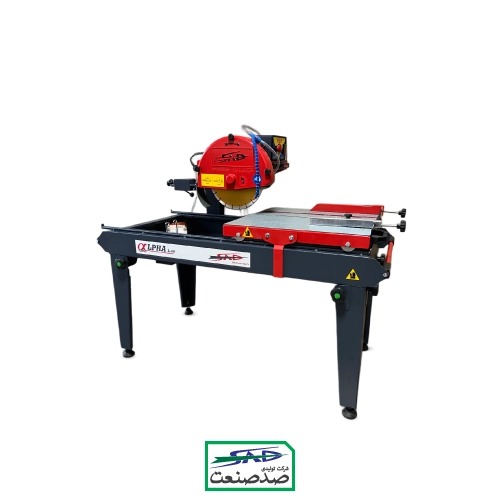

Sad Sanat Alpha L60 Stone Cutting Machine

Sad Sanat Alpha L60 Stone Cutting Machine Specifications

• Equipped with a protractor for cutting at various angles
• Includes an auxiliary table for cutting long workpieces
• Detachable legs for easier transportation and mobility
• Compatible with cutting blades ranging from 300 to 400 mm
• Supports a 400 mm blade as standard (no special order required)
• Equipped with a fixed side square guide for precise straight cuts
• Portable design with tubular handles for easy movement on-site
• Equipped with galvanized trays to prevent rust and corrosion
• Includes a water tank, submersible pump, and integrated drain cover
• Adjustable blade height up to 100 mm for cutting and scoring workpieces
• Electrical control panel and safety fuse for protection of the motor and water pump
• Flat electric motor (single-phase and three-phase) with 3 HP power and 3000 RPM speed
• Bevel cutting capability from 0° to 45° (miter cutting)
• Equipped with an adjustable rear stop for repeated and uniform cuts at desired dimensions
• Features a protective plastic rail for the power cable and water hose to prevent bending and damage
• Cutting movement system based on a moving cutting table (fixed cutting head; without linear guide rails)
• Manual gearbox installation option available upon customer request for easier cutting operation

To order the Sad Sanat Alpha L60 Stone Cutting Machine, contact our experts at: +98 21 65533322
